Factory Limitations
BMW built the E38 to be comfortable first and sporty second. That was the right call for a flagship sedan in 2001. But 24 years later, with worn bushings, tired shocks, and degraded brake components, the car needed more than just replacement parts.
The original suspension was shot. Thrust arm bushings had the typical E38 wear. Tie rods had play. The whole front end felt vague in ways that made spirited driving sketchy rather than fun. And the brakes? Adequate for highway cruising, but not confidence-inspiring when you actually needed to stop.
Rather than just refreshing worn components with identical replacements, this was the opportunity to address BMW's compromises while keeping the car's character intact.

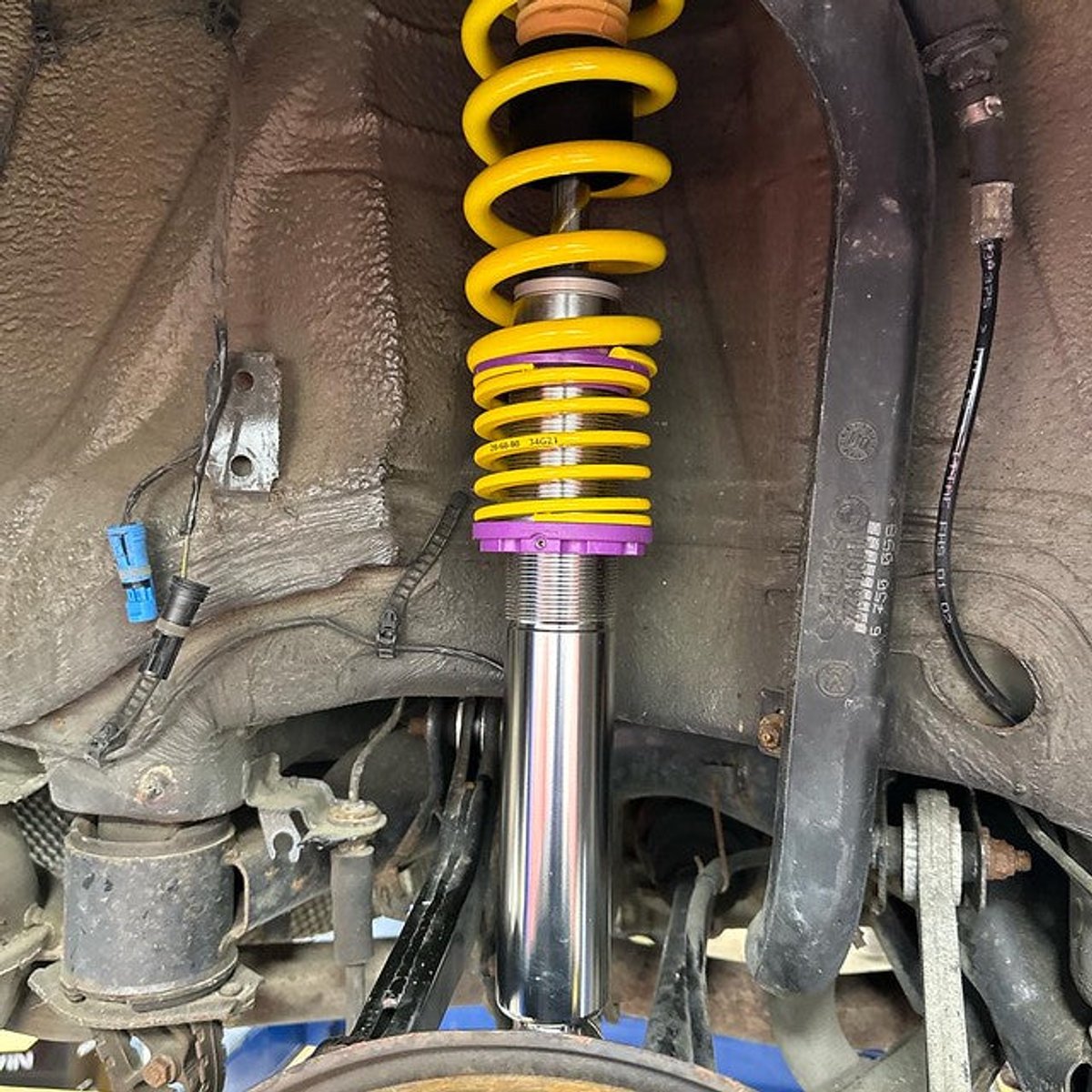

KW V3 Coilovers
The KW Variant 3 setup was the foundation for the suspension overhaul. These aren't budget coilovers. They're properly engineered units with independent compression and rebound adjustment.
That adjustability matters on a car like the E38. You can dial in a comfortable setting for daily driving, then firm things up when you want a sharper response. The car transforms depending on how you set them.
Height adjustability lets you get the stance right without compromising suspension travel. I dropped the car enough to eliminate the wheel gap without going so low that it becomes impractical. The goal was OEM-plus, not slammed.
One thing to note: with four adults in the car, you will get some rubbing on dips. Going up a turn or two on the stiffness setting reduces it significantly. Under heavy load there's still occasional contact, but it's manageable. That's the trade-off for improved handling.
Front Suspension Upgrades
The coilovers are only part of the equation. The E38's front suspension has several known weak points that needed addressing.
Syncro Design Works Thrust Arms: The OEM thrust arms were worn and on the way out. Did some research and found these were available at roughly the same price as OEM replacements. Figured if the cost is similar and the design is improved, why not upgrade? They're a great looking piece too. I installed them while the wheel liners were out, which made access much easier.
Turner Motorsport Mono-ball Control Arms: BMW's flexible rubber control arm bushings are comfort-oriented but allow significant movement. That's fine for soaking up bumps, but it also means alignment changes under load and a disconnected road feel. The Turner mono-ball setup uses sealed BMW ball joints that eliminate deflection while still allowing proper suspension travel. Steering precision improved immediately.
Meyle Tie Rod Kit: The steering had developed play from worn tie rod ends. The Meyle kit includes the center drag link and outer tie rod ends. It's OEM quality at a reasonable price. After installation, the vague steering feel disappeared. The car tracks straight and responds precisely to input now.

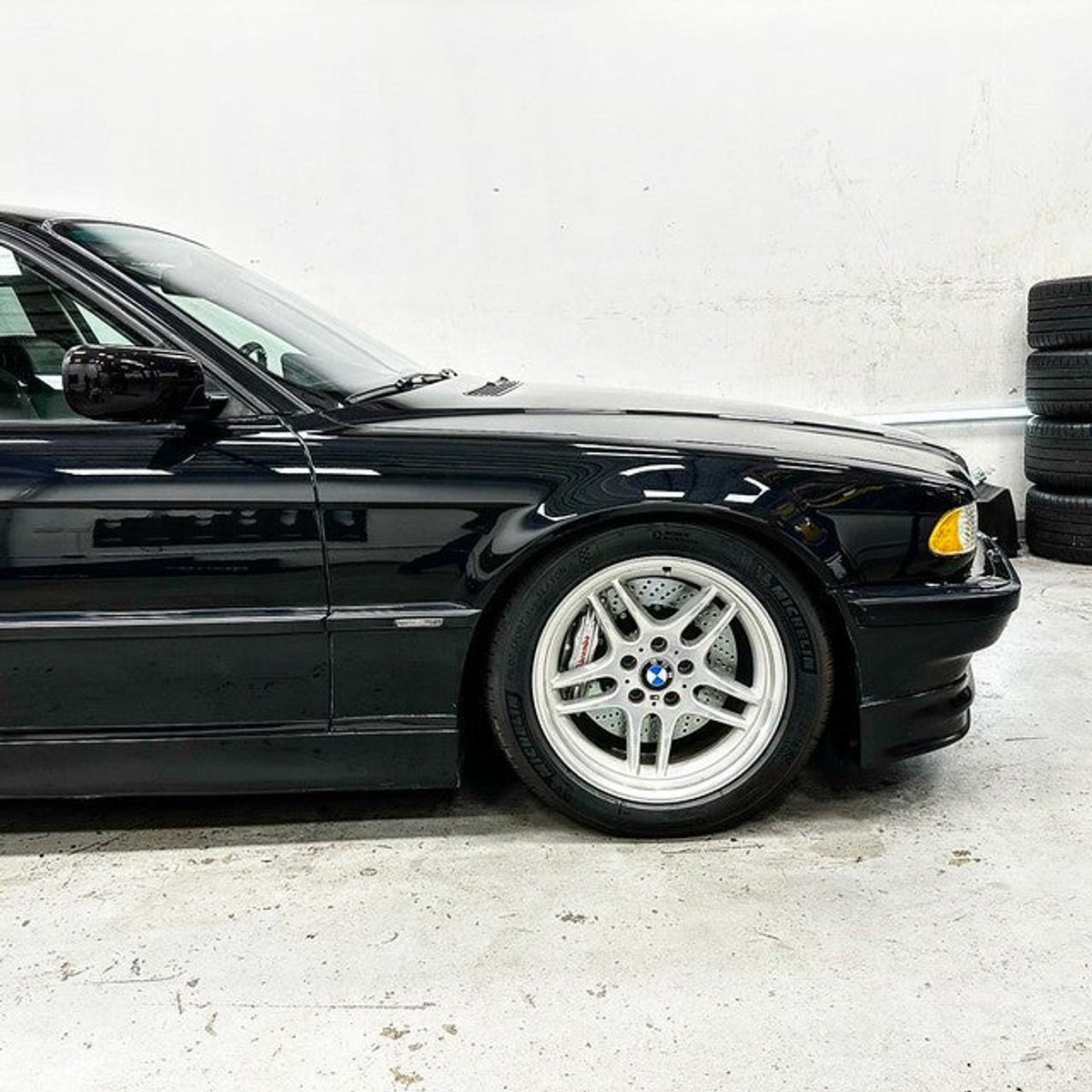

Wheel Fitment and Spacers
With the suspension sorted, the wheel fitment needed attention. The factory offset on E38s tucks the wheels too far into the fenders for the lowered stance.
H&R spacers filled out the fenders properly: 12mm up front, 15mm in the rear. I did test fits with and without spacers before committing. The difference is obvious. Without spacers the wheels look sunken. With spacers the stance is correct.
While the wheel liners were out for the suspension work, took the opportunity to clean them up properly. Years of road grime had accumulated. Small detail, but you notice it every time you look at the car with the wheels off.

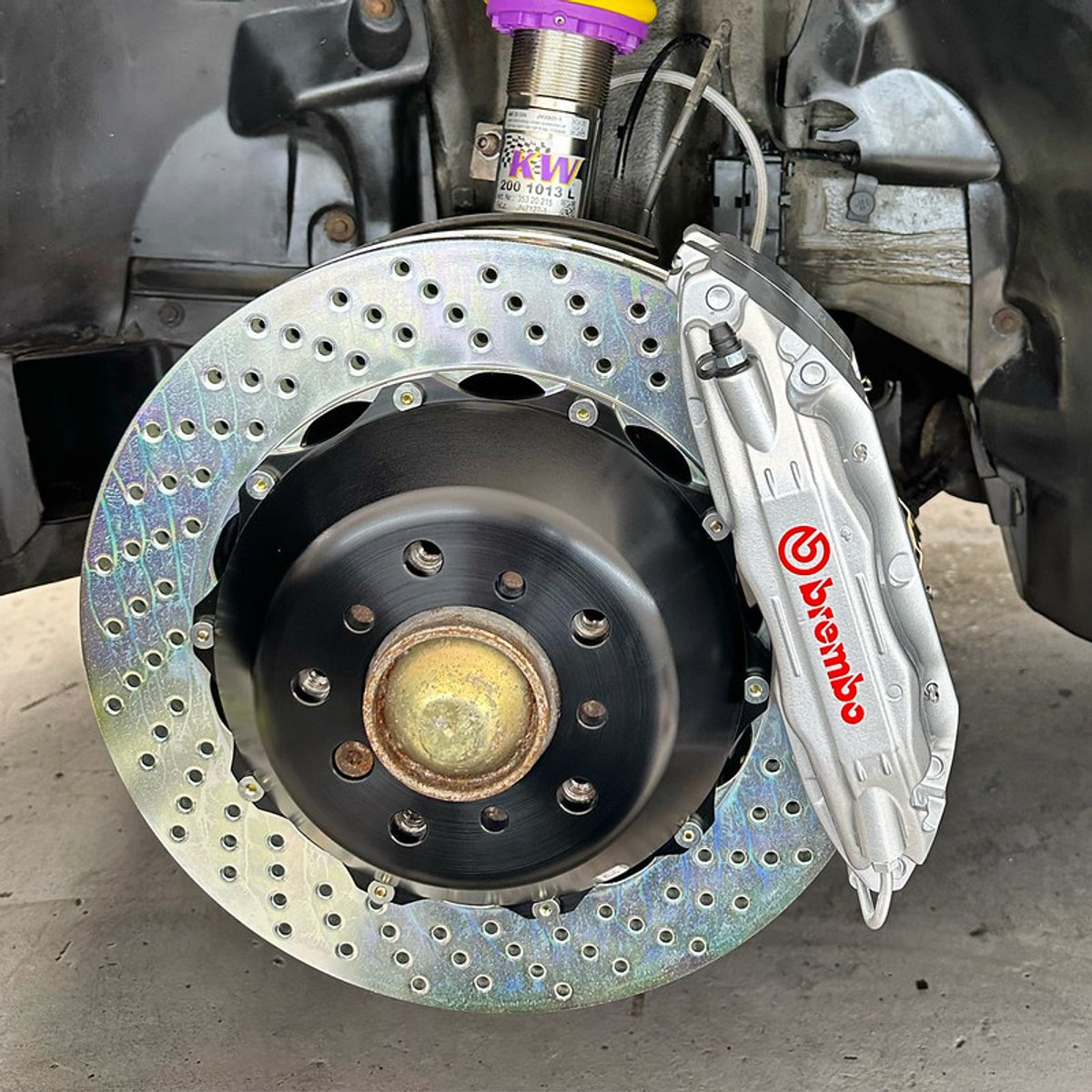

Brembo GT Front Brake Kit
The factory brakes on the E38 were never impressive. Adequate for a luxury sedan, but not confidence-inspiring. With improved suspension and the intention to actually drive the car enthusiastically, real brakes became necessary.
The Brembo GT kit brings 4-piston calipers and 355mm rotors to the front. That's a massive upgrade from stock. The difference in pedal feel alone is worth it. It has a firm initial bite, progressive response, and fade resistance that the factory setup couldn't approach.
These brakes look serious behind the wheels too. The red Brembo calipers fill the wheel opening properly. It's one of those upgrades that's both functional and visual.
Rear Brake Upgrades
The rear brakes got attention too, though not as dramatically as the fronts.
ATE Rebuilt Rear Calipers: The original calipers were tired. Rather than just slapping pads on worn units, I went with properly rebuilt ATE calipers. Fresh seals, proper function, no sticking or uneven wear.
Brembo Cross Drilled Rotors: I matched the upgraded calipers with Brembo cross drilled rotors. Better heat dissipation than solid rotors, and they look appropriate with the overall build.
Brembo Rear Pads: Quality pads to match the quality rotors. The compound works well with the cross drilled design and provides consistent performance.
Goodridge Stainless Steel Brake Lines
Factory rubber brake lines expand under pressure. That expansion creates a soft pedal feel and reduces braking precision. On a 24-year-old car, those rubber lines have also degraded from age, heat cycles, and environmental exposure.
Goodridge stainless steel lines went on all four corners. The difference in pedal feel is immediately noticeable. Firm, direct response with no sponginess. Your foot tells the brakes what to do and they do it without interpretation.
This is one of those upgrades that costs relatively little but transforms how the car feels. It should be standard on any serious brake upgrade.
The Complete Package
Suspension:
- KW Variant 3 coilovers with adjustable compression and rebound
- Syncro Design Works thrust arms
- Turner Motorsport mono-ball control arm upgrade
- Meyle tie rod kit with center drag link and outer ends
- H&R spacers, 12mm front and 15mm rear
Brakes:
- Brembo GT front brake kit, 4-piston calipers with 355mm rotors
- ATE rebuilt rear calipers
- Brembo cross drilled rear rotors
- Brembo rear brake pads
- Goodridge stainless steel brake lines, front and rear
How It Drives Now
The transformation is significant. This is still an E38, still comfortable, still composed over rough pavement. But now it actually responds when you ask it to.
Turn-in is sharper. The vague, floaty feeling from worn bushings is gone. You point the car and it goes where you intended. The mono-ball control arms and fresh tie rods communicate what the front tires are doing.
The brakes inspire confidence now. The Brembo setup has real stopping power, and the stainless lines let you modulate that power precisely. You can actually trail brake into corners without wondering if the car will stop.
The E38 was always a great highway cruiser. Now it's also fun on back roads. That's what the chassis upgrades delivered: capability the factory chose not to include.
